RTMQ-420
RUITING
8441100000
| Machine size: | |
|---|---|
| weight: | |
| PDF Export | |
It is adopts micro-computer control for accurate flatten die cutting, material feeding, and sheeting, 3 points photocells for web-guiding and tracking.
Die cutting, waste collecting and finished-material sheeting or rewinding are on one process.
The machine could be used for die cut adhesive paper, dacron label and laser hologram label.
It is the ideal auxiliary equipment of flexo printing machine, silk screen printing machine, gravure printing machine and hologram mark printing machine, and the most efficient unit for printing house.
Main Equipments:
a) Servo Motors are equipped for accurate material transmission.

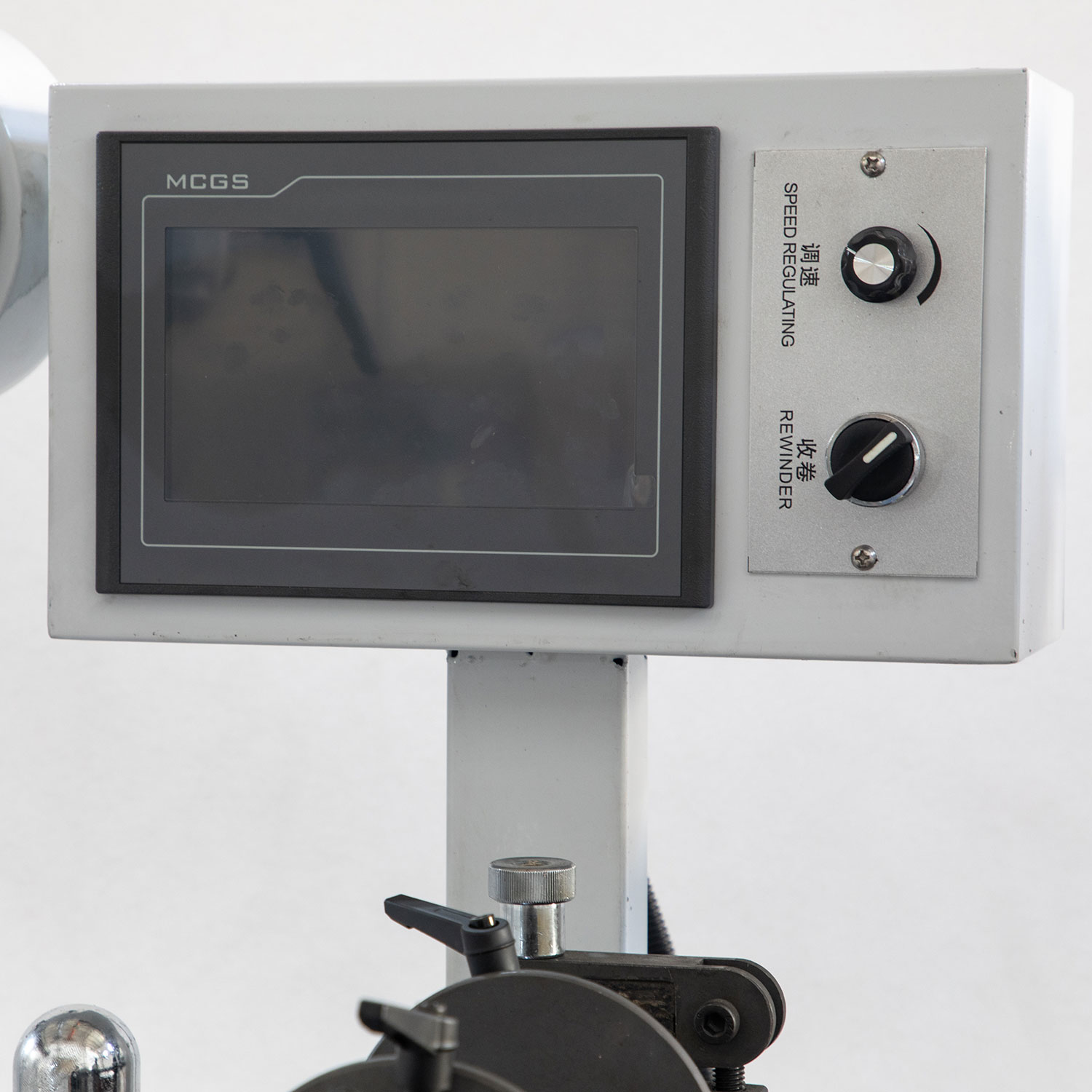

b) Touch Screen for convenient operation
c) Frequency Converter used for speed regulation
d) 3 pcs of Photocells are used for web guiding
e) Lamination shaft, sheeter device, rewinder are equipped for multi purpose.
Main Technical Specification:
Model | 330 model |
cut speed | 200 time/min |
Max unwinding diameter | 550mm |
Max web width | 420mm |
Max die-cut width | 410mm |
Max die-cut Length | 410mm |
Position accuracy | ±0.1mm |
Total power | 3.3kw |
Power voltage | 220v±10% |
Machine weight | About 1700kg |
Overall dimension | 2.9(L)×1.3(W)×1.45(H)(m) |
Advantage:
With independent rewinding motor and magnetic power tension control system, automatic oiling device system, high precision die cutting, high speed, variety of processing such as lamination, hot stamping, sheeting, slitting can be integrated in once process. It is perfect match with the label digital printing machine and other type printing machine.
This machine has flat pressing and high precision die cuts unit,shifting materials and slice are controlled by servomotor. The
printing label’s two-faces and longitudinal color code are tracked and located precisely through three photoelectric eyes.It
finishes all the process of die-cut,recycle of waste mateial,slicing and roll winding for auto label brander only once. It is
applicable to die cut adhesive label,terylene film trademark and laser anti-fake trademark.And this machine is an ideal supporting
equipment for rotary high speed cylinder type label printing press,flexible printing machine,screen printing press,intaglio
printing press,anti-fake trdemark stem pressing machine and it is also the most efficient equipment for trademark printing house
and electronice inductry,adhesive tape product line.
